24.125GHz Radar Sensor with Dual Relay Outputs and IP65 Protection for Industrial Fast Speed Doors

Name: 24125GHz Radar Sensor with Dual Relay Outputs and IP65 Protection for Industrial Fast Speed Doors
Brand: JUTAI
Price: 1 USD

Power Supply : 12-28VAC, 12-36VDC

Package Size : 28.00cm * 13.00cm * 10.00cm

Frequency : 24.125GHz

Output : 2 Relays Output. Max.48 VAC/DC. Max.Current 1A

HS Code : 9031809090

Detection Height : 2m to 9m

Brand Name : JUTAI

Model Number : RVP42-9ME

Certification : FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay

Supply Ability : 1000 pieces per month

Delivery Time : 5-8 days

Packaging Details : Cartoon

Contact Now

Automatic Gate Activation Detector 24GHz Radar Sensor For Industrial Fast Speed Door

The RP42-9ME/RVP42-9MG is a high-performance motion radar detector designed for both vehicle and human detection, specifically engineered for industrial applications including fast-speed doors, garage doors, cold storage doors, and road gates.

Key Features & Advantages

Advanced Detection Technology

Dual relay outputs for vehicle and pedestrian detection
Recognition and filtering functions for horizontally moving vehicles or pedestrians (RVP12-9ME/RVP42-9MG variant)
24.125GHz Doppler radar technology for precise motion detection

Flexible Detection Configuration

Adjustable narrow or wide detection areas suitable for all installation types
Easy configuration with narrow lens attachment for focused detection
Simple position adjustment via left/right rotation and tilt adjustment
Fine-tune sensitivity using the built-in potentiometer

Intelligent Operation Modes

Vehicle-detection relay activates upon detecting vehicles
Person-detection relay triggers for human presence
Combined mode activates both vehicle and person detection relays
Configurable for exclusive vehicle-detection mode when required

Direction Recognition Capabilities

Forward motion detection for approaching traffic
Reverse motion detection for departing traffic
Bidirectional sensing for comprehensive coverage

Operational Benefits

Energy Efficiency: Selective activation only with approaching traffic reduces energy consumption and prevents unnecessary door operation.

Automatic Control: Ensures doors remain open during usage and close automatically when traffic departs, optimizing workflow efficiency.

Hands-Free Operation: No manual intervention required, suitable for both new installations and retrofitting on dock and pedestrian doors.

Traffic Distinction: Advanced filtering capabilities differentiate between pedestrian, forklift, and parallel traffic detection.

Technical Specifications

Feature	Details
Application Technology	Doppler radar
Transmission Frequency	24.125GHz
Transmission Power	<20dBm
Detection Height	2.0m~9.0m
Angle Adjustment	0°-90° longitudinal
Detection Speed	5cm/s~25km/s
Detection Area (30° Angle)	3.0m x 3.5m @ height: 2m / 6.5m x 8.5m @ height: 9m
Operation Current	<100mA
Power Frequency	50Hz
Temperature Range	-30 ºC~+60 ºC
Relative Humidity	0% to 95%, no condensation
Protection Grade	IP65
Relay Output	24VDC @ 1A / 125VAC @ 0.5A
External Dimensions	164mm x 111mm x 94.5mm
Cable Length	7m
Sensor Weight	650g
Operation Voltage	12~36VADC

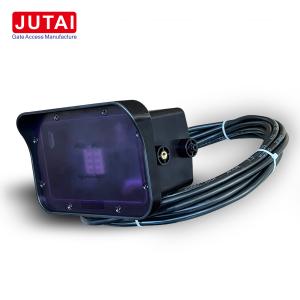

Product Images

24.125GHz Radar Sensor with Dual Relay Outputs and IP65 Protection for Industrial Fast Speed Doors

Direction Recognition Features

Application Solutions

The RP42-9ME/RVP42-9MG radar sensor delivers a versatile solution for industrial door applications, boasting high customization, reliable detection capabilities, and energy-efficient operation.
