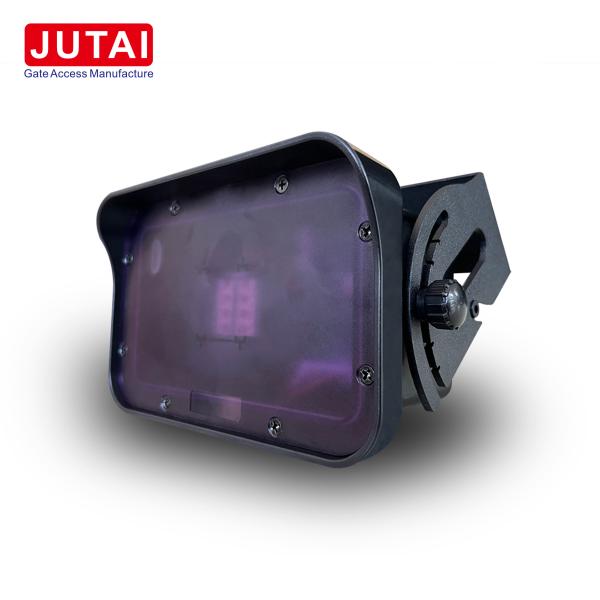

JUTAI Motion Sensor Person Forklift Differentiation With 2 Relay For Automatic Industrial Gate

Name: JUTAI Motion Sensor Person Forklift Differentiation With 2 Relay For Automatic Industrial Gate
Brand: JUTAI
Price: 1 USD

Power Supply : 12-28VAC, 12-36VDC

Output : 2 Relays Output. Max.48 VAC/DC. Max.Current 1A

Brand Name : JUTAI

Model Number : RVP42-9ME

Certification : FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay

Supply Ability : 1000 pieces per month

Delivery Time : 5-8 days

Packaging Details : Cartoon

Package Size : 28.00cm * 13.00cm * 10.00cm

Frequency : 24.125GHz

HS Code : 9031809090

Detection Height : 2m to 9m

Contact Now

JUTAI Motion Sensor Person Forklift Differentiation With 2 Relay For Automatic Industrial Gate

Product Overview

The RP42-9ME is a high-performance motion radar detector designed for vehicle and human detection. Developed specifically for industrial doors, garage doors, cold storage doors, road gates, and other industrial applications, this advanced sensor ensures reliable and precise detection. Equipped with dual relays, it offers customizable outputs for vehicle and pedestrian detection as needed.

JUTAI Motion Sensor Person Forklift Differentiation With 2 Relay For Automatic Industrial Gate

Technical Specifications

Feature	Details
Application Technology	Doppler radar
Transmission Frequency	24.125GHz
Transmission Power	<20dBm
Detection Height	2.0m~9.0m
Angle Adjustment	0°-90° longitudinal
Detection Speed	5cm/s~25km/s
Detection Area (30° Angle)	3.0m x 3.5m @ height: 2m / 6.5m x 8.5m @ height: 9m
Operation Current	<100mA
Power Frequency	50Hz
Temperature Range	-30 ºC~+60 ºC
Relative Humidity	0% to 95%, no condensation
Protection Grade	IP65
Relay Output	24VDC @ 1A / 125VAC @ 0.5A
External Dimensions	164mm x 111mm x 94.5mm
Cable Length	7m
Sensor Weight	650g
Operation Voltage	12~36VADC

Key Features

Versatile Detection Area

Offers narrow or wide detection area, easily adjustable without external devices, suitable for all installations.

Dual Relay Outputs

Fully customizable hands-free radar motion sensor with dual relays for vehicle and person detection.

Direction Recognition

Adjustable detection direction for motion forward, backward, or both.

Energy Savings

Increases efficiency and controls pests by limiting activation to approaching traffic only.

Speed Up Workflows

Enables hands-free door operation, speeding up workflows for dock and pedestrian doors.

Application Scenarios

Industrial Doors: Suitable for fast doors, stacking doors, and other industrial door applications
Garage Doors: Ensures reliable operation for residential and commercial garage doors
Cold Storage Doors: Maintains energy efficiency and security for cold storage environments
Road Gates: Enhances security and efficiency for road gate operations

Advanced Capabilities

Direction Recognition

Detects vehicles perpendicular to the door for entry while ignoring vehicles passing by without entering.

Lateral Motion Recognition

Effectively prevents random door opening with configurable direction detection settings.

Remote Configuration

Program parameters remotely using universal remote control (sold separately).

Bluetooth Mobile App

Connect via Bluetooth to mobile app for simple and convenient parameter settings.

Detection Technology

The JUTAI industrial door opening sensor features dynamic detection technology that identifies moving objects only, not stationary objects. It distinguishes between persons and vehicles by analyzing object area, with detection accuracy increasing with installation height.

Adjustable Detection Range

Three range settings: 1-3 (small), 4-6 (medium), 7-9 (large) for precise area control.

Flexible Installation

0-90 degree angle adjustment for intelligent adaptation to various installation scenarios.

Durability & Environmental Resistance

Designed for harsh industrial environments, the JUTAI door opening sensor operates reliably in temperature ranges from -30°C to +60°C with IP65 protection rating, ensuring performance in various outdoor working conditions.

Product Components

About JUTAI

JUTAI is a leading provider of advanced security and automation solutions. With a strong R&D team and extensive industry experience, we are committed to delivering innovative and high-quality products that meet the evolving needs of our clients. Our dedication to customization and excellence ensures that we can tailor our products to fit specific requirements, providing the most effective and reliable solutions available.
