1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck

Self-turning Range : 20-2000μH

Relay : Presence relay / Fault relay

Sensitivity : 6 way selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L

Response Times : Turn-on 10-90MS / Turn-off 10-90MS

Fault Output : Blinks slowly: may indicate a short circuit or insufficient number of turns
Blinks faster: may indicate an open loop or excessive number of turns

Operation Tempts : -40℃ to +70℃ / (-111°F to +158°F)

Brand Name : JUTAI

Model Number : LD-100

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay

Supply Ability : 10000pcs/month

Delivery Time : 3-5 working days after receipt the payment

Packaging Details : Carton Parcking(13.5*8.5*5cm)/0.3kg/unit

Frequency : Four step switch selectable20-80KHz

Power Supplu : 110-240v

Contact Now

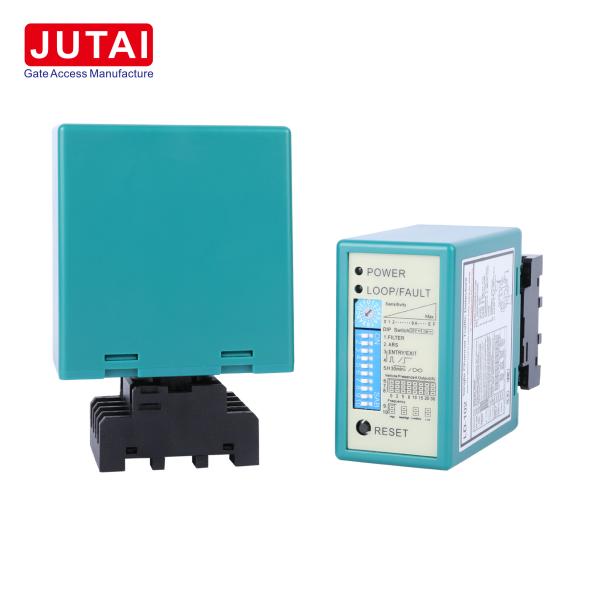

JUTAI LD-100 Compact Single Channel Vehicle Loop Detector
The JUTAI LD-100 Compact Single Channel Vehicle Loop Detector is designed for parking barrier gates, providing efficient identification and detection of various vehicles, including oversized vehicles, trucks, and motorcycles, for seamless automatic gate opening and closing.
Key Advantages
Compact Design
Compact and well-engineered housing allows seamless incorporation into any existing traffic detection system.
Diagnostic Capabilities
Comprehensive diagnostic capabilities ensure accurate diagnosis of loop and installation problems.
Selectable Presence Time
Output can be adjusted to limit detection output to fixed time (time > 30 minutes) while vehicle remains on loop.
Frequency Adjustment
Interference between adjacent loops/detectors can be eliminated by adjusting frequency setting.
Dual Output Relays
Presence Relay A and Pulse Relay B with programmable options via external switches.
Fault Detection
Integral fault relay provides output in event of loop fault condition.
Technical Specifications
Specification Value
Self-turning Range 20-2000μH
Sensitivity 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L
Frequency Four-step switch selectable 20-80KHz
Power Requirements 110-240VAC (48 to 62Hz)
Operation Temperature -40℃ to +70℃ / (-111°F to +158°F)
Response Times Turn-on 10-90MS / Turn-off 10-90MS
Visual Indications Power LED - Red
Channel LED - Green
Relay Output Presence relay / Fault relay
Humidity Up to 95% relative humidity without condensation
DIP Switch Settings
The LD-100 features comprehensive DIP switch configuration for optimal performance:
DIP 1 & 2: Special Functions
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
DIP 3 & 4: Relay B Output
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
DIP 5: Automatic Reset
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
DIP 6, 7 & 8: Relay A Delay
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
DIP 9 & 10: Frequency Selection
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
Loop Installation Guide
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck 1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
Product Comparison
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
Product Variants
Available in multiple configurations to suit different requirements:
  • LD-100: Single channel, boxed, 1 type 11pin connects 100-240VAC (EU standard)
  • LD-102: Single channel, boxed, 1 type 11pin connects 12-24VADC (EU standard)
  • LD-105: Single channel, boxed, 2 type 11pin connects 100-240VAC (USA standard)
  • LD-106: Single channel, boxed, 2 type 11pin connects 12-24VADC (USA standard)
Quality Assurance
Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver loop detector products of the utmost perfection.
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck 1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck 1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck 1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
Certifications
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck 1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
Why Choose JUTAI?
Industry Experience
With over 15 years of expertise in manufacturing vehicle loop detectors, JUTAI has comprehensive market knowledge and understands product nuances.
Comprehensive Support
Benefit from our 2-year warranty and dedicated 24/7 after-sales service with online technical support.
Flexible Ordering
We accommodate both sample orders and large-scale OEM/ODM projects with custom solutions.
Quality Commitment
We guarantee swift replacement with new products in the rare event of any issues, prioritizing customer satisfaction.
Ordering Information
Minimum Order Quantity
Flexible ordering with sample orders and bulk orders available
Delivery Time
2 to 10 working days depending on order quantity and stock availability
Customization
Comprehensive OEM/ODM services available to meet exact requirements
